Core Specifications
| work height | 16.10m |
| platform height | 14.10m |
| max outreach | 7.54m |
| width | 2.29m |
| stowed length | 6.50m |
| stowed height | 2.07m |
| weight | 6500kg |
| platform capacity | 227kg |
| ipaf category | 3B |

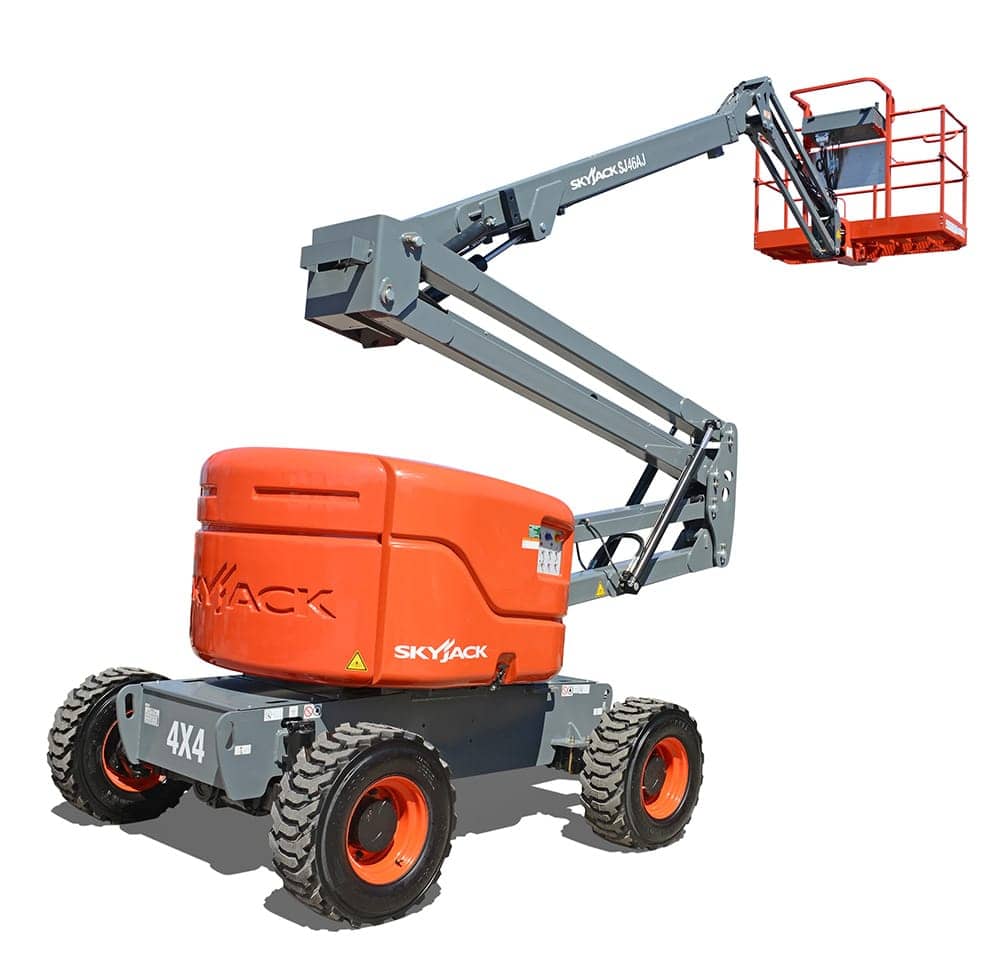

Hire Skyjack SJ46 AJ
Ready to Hire
Download 2024 Brochure
Skyjack 4 Wheel Drive Cherry Picker
Available in 24 hours
Nationwide Delivery
Outstanding Support
Scan & Go
For your convenience, all our access platforms have a QR code attached for instant access to:
- LOLER Documentation
- Inspection Certificate
- Daily Safety Checklist
- Axle based 4WD system
- Operator controlled locking rear differential and limited slip front differential
- Oscillating axle
- Drivable at full height
- 355° Non-continuous turret rotation
- 45% Gradeability
- Deutz D2.9L4 diesel engine or Kubota WG2503 dual fuel engine
- Swing out engine tray
- Swing up cowlings
- Modular platform railing system
- Dual-entry sliding mid rails
- 110V AC Outlet on platform with GFI
- EASYDRIVETM direction sensing drive and steer controls
- SKYRISERTM true vertical rise
- Proportional controls
- Relay based control system
- SKYCODEDTM color coded and numbered wiring system
- Hourmeter
- Operator horn
- All motion alarm
- Tie down/lifting lugs
- Wet disc SAHR brakes (rear axle)
- 12 x 16.5 Grip lug air-filled tires
- Telematics ready
